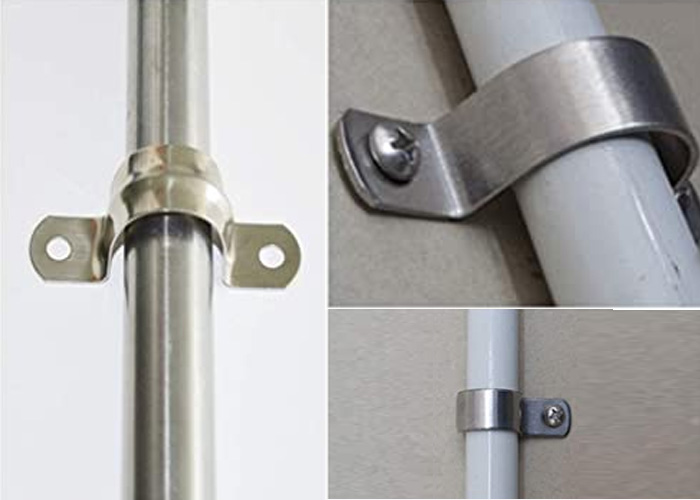

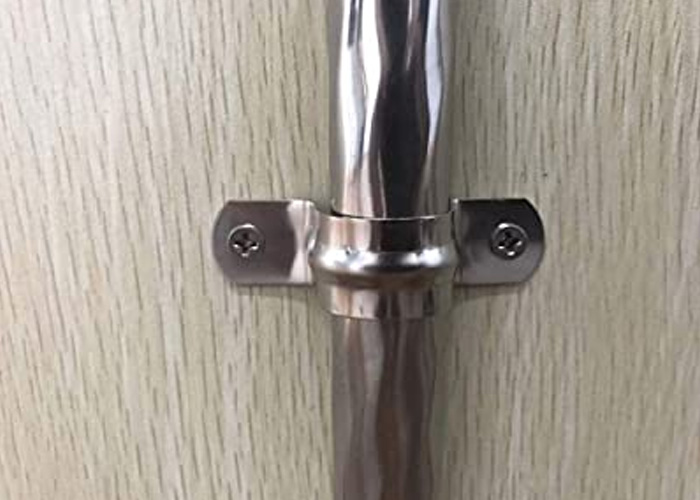

LIGHT SADDLE is recommended for supporting a piping system with vertically or horizontally to walls or ceilings.

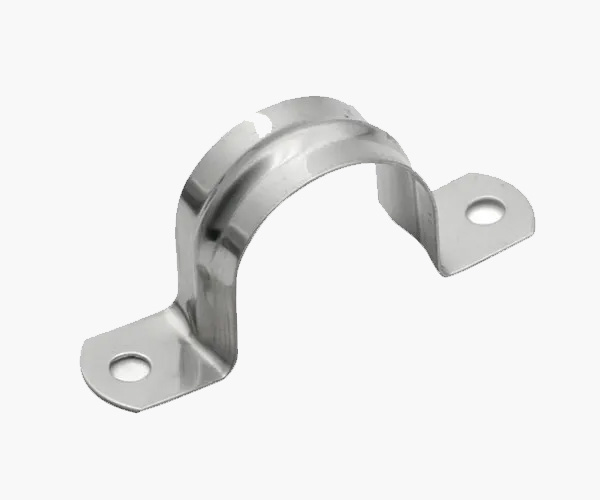

LIGHT SADDLE consists of single piece of mild steel shaped to the proper configuration as shown in the diagram.
Mild Steel. Also other materials can be provided on request
Plain, Electro-Galvanized, Hot Dip Galvanized & Zinc Flake.
| PRODUCT CODE | NOMINAL(INCH) | PIPE SIZE( MM ) | DIA( MM ) | SCREW |
|---|---|---|---|---|
| HNUF0000E0022 | 1/2" | DN 15 | 21.3 | M 6 |
| HNUF0000E0027 | 3/4" | DN 20 | 26.7 | M 6 |
| HNUF0000E0034 | 1" | DN 25 | 33.4 | M 6 |
| HNUF0000E0042 | 1 1/4" | DN 32 | 42.1 | M 6 |
| HNUF0000E0048 | 1 1/2" | DN 40 | 48.2 | M 6 |
| HNUF0000E0060 | 2" | DN 50 | 60.3 | M 6 |
| HNUF0000E0073 | 2 1/2" | DN 65 | 73 | M 6 |
| HNUF0000E0089 | 3" | DN 80 | 55.9 | M 6 |
| HNUF0000E00114 | 4” | DN 100 | 114.3 | M 6 |
| HNUF0000E00168 | 6” | DN 150 | 168.3 | M 6 |
