U bolts with lining

APPLICATION :

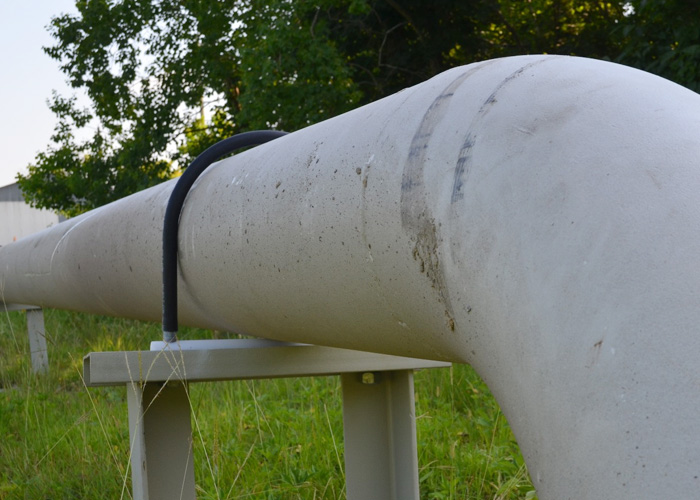

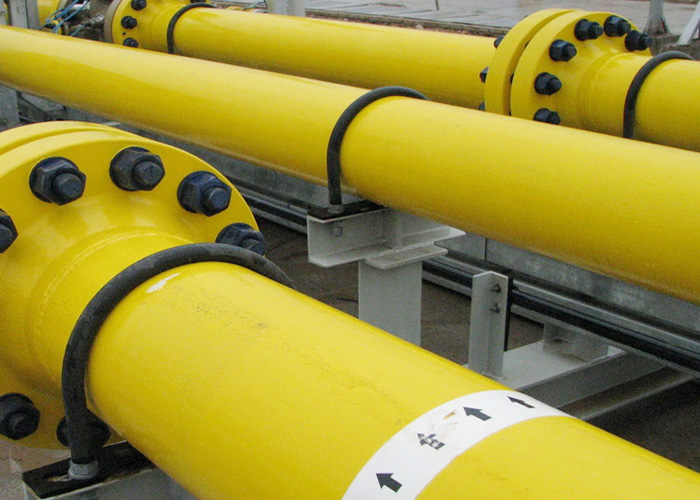

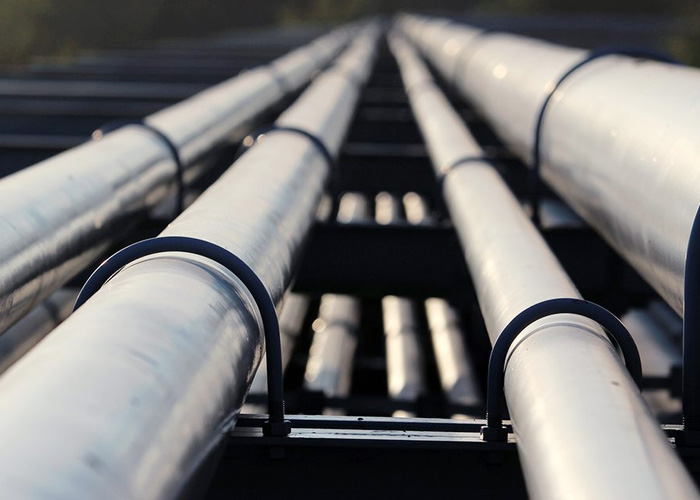

U-BOLTS WITH LINING are used to secure piping to structural members. When the piping is below the structural member, U-BOLT WITH LINING provides vertical support and restricts lateral movement while allowing for axial movement. When the piping system is above the structural member, the U-BOLTS WITH LINING restricts lateral movement and upward movement while allowing axial movement of the piping

CONSTRUCTION :

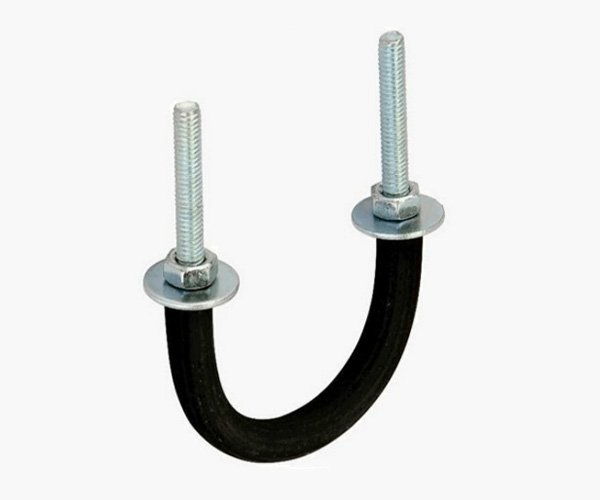

U-BOLTS WITH LINING is provided with four standard hex nuts and has a longer straight threaded length. Reduces noise upto 18dB.

MATERIAL :

Mild Steel. Also other materials can also be provided on request

APPROVALS :

ANSI/MSS SP-69 & SP-58(Type 24)
Federal Specification WW-H-171E & A-A-1192A (Type 24)

MAXIMUM TEMPERATURE :

110°C

MINIMUM TEMPERATURE :

-20°C

FINISH AVAILABLE :

Plain, Electro-Galvanized, Hot Dip Galvanized & Zinc Flake.
