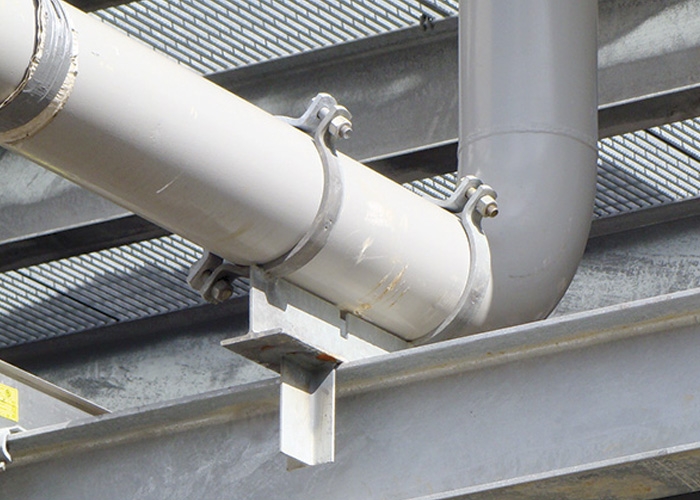

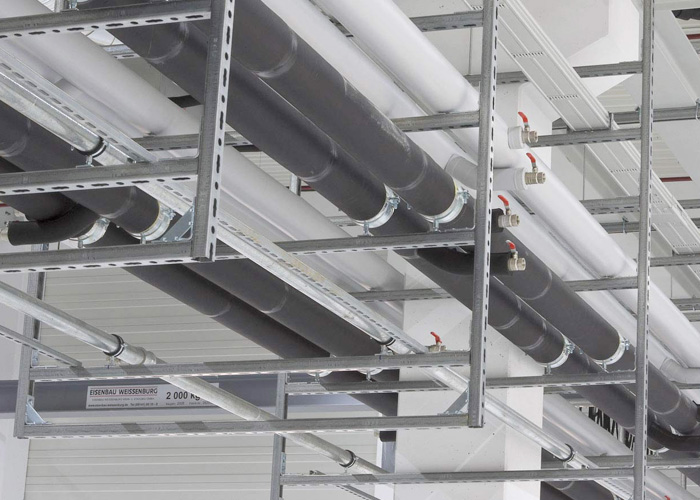

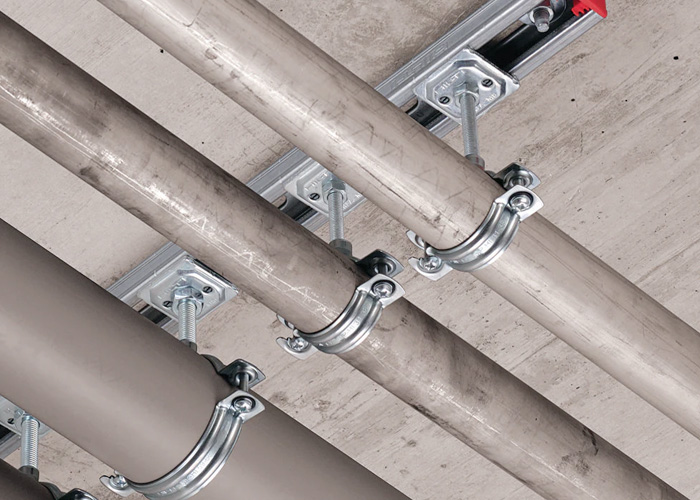

PIPE HANGER is recommended for non-insulated stationary pipe lines in either a horizontal or vertical position. It can be used for supporting pipes along with the roof as well as wall.

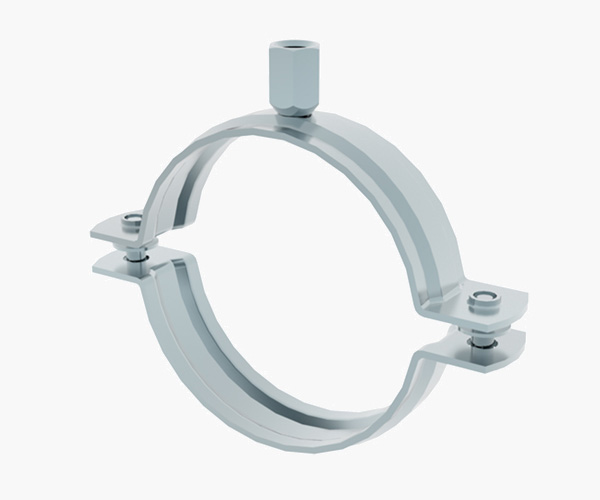

PIPE HANGER consists of piece of mild steel shaped to wrap around the pipe, The selection of the PIPE CLAMP depends upon the temperature of piping system and load to be carried. Pipe hanger permits installation before and after pipe is placed.
Mild Steel. Also other materials can be provided on request
- 343°c(650°c)
Plain, Electro-Galvanized, Hot Dip Galvanized & Zinc Flake.
| PRODUCT CODE | NOMINAL PIPE SIZE | PIPE OD | RANGE | HANGER ROD | SIDE SCREW | MAX LOAD | |
|---|---|---|---|---|---|---|---|
| IN. | MM | (MM) | (MM) | SIZE (MM) (A) | SIZE | (KG) | |
| TGNC000UE0022 | 1/ 2” | DN15 | 21.3 | 20-25 | M10 | M6 | 460 |
| TGNC000UE0027 | 3/ 4” | DN20 | 26.7 | 26-30 | M10 | M6 | 460 |
| TGNC000UE0034 | 1" | DN25 | 33.4 | 32-36 | M10 | M6 | 460 |
| TGNC000UE0042 | 1 1/ 4” | DN32 | 42.1 | 38-43 | M10 | M6 | 460 |
| TGNC000UE0048 | 1 1/ 2” | DN40 | 48.2 | 47-51 | M10 | M6 | 460 |
| TGNC000UE0060 | 2" | DN50 | 60.3 | 60-64 | M10 | M6 | 460 |
| TGNC000UE0073 | 2 1/ 2” | DN65 | 73.0 | 74-80 | M10 | M6 | 570 |
| TGNC000UE0089 | 3" | DN80 | 88.9 | 87-92 | M10 | M6 | 570 |
