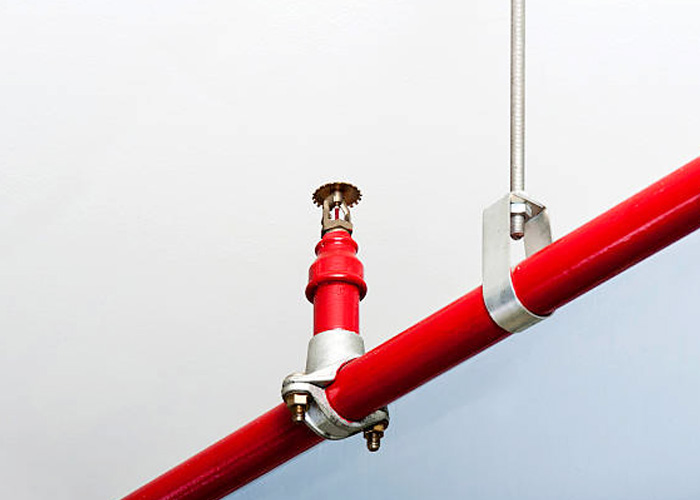

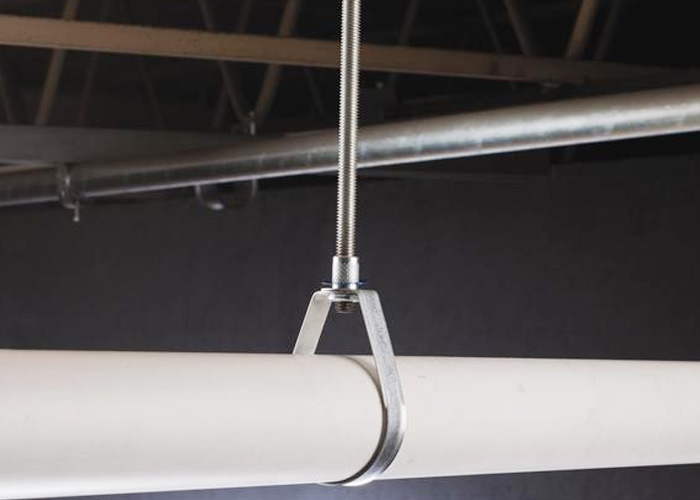

A SPRINKLER HANGER recommended to provide vertical support to non insulated piping systems. By adjusting the position of the sprinkler nut on the hanger rod at the top of the hanger, pipe elevation can be altered.

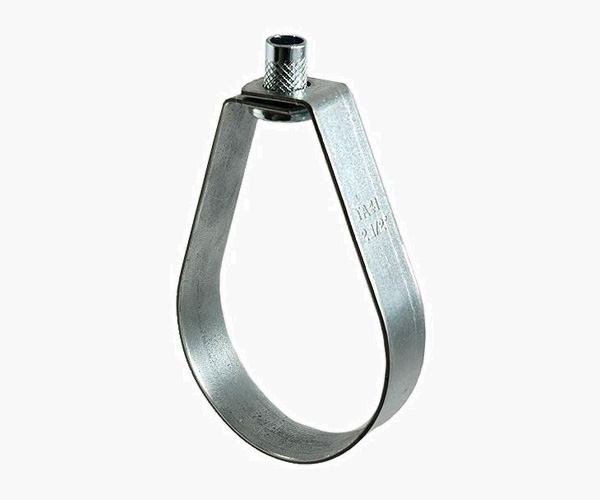

A SPRINKLER HANGER consists of a piece of mild steel shaped to support pipe. Gives Double thickness at the support. Most suitable for fire extinguishing pipes installation.
Mild Steel. Also other materials can be provided on request
ANSI/MSS SP-58 & SP-69(Type 10)
Federal Specification WW-H-171E & A-A-1192A(Type 10)
343°C(650°F)
Plain, Electro-Galvanized, Hot Dip Galvanized, Zinc Flake & Epoxy Coated.
| PRODUCT CODE | NOMINAL PIPE SIZE | PIPE OD (MM) | HEIGHT | HANGER ROD SIZE (MM) | MAX LOAD | |
|---|---|---|---|---|---|---|
| IN. | MM | D | H | R | (KG) | |
| HNUF0E0027 | 3/ 4” | DN20 | 26.7 | 61 | M10 | 220 |
| HNUF0E0034 | 1" | DN25 | 33.4 | 70 | M10 | 220 |
| HNUF0E0034 | 1 1/ 4” | DN32 | 42.1 | 78 | M10 | 220 |
| HNUF0E0048 | 1 1/ 2” | DN40 | 48.2 | 84 | M10 | 220 |
| HNUF0E0060 | 2” | DN50 | 60.3 | 102 | M10 | 220 |
| HNUF0E0073 | 2 1/ 2” | DN65 | 73.0 | 118 | M10 | 300 |
| HNUF0E0089 | 3” | DN80 | 88.9 | 144 | M10 | 300 |
| HNUF0E0114 | 4” | DN100 | 114.3 | 176 | M10 | 300 |
| HNUF0E0168 | 6” | DN150 | 168.3 | 262 | M12 | 550 |
| HNUF0E0219 | 8” | DN200 | 219.1 | 305 | M12 | 1300 |
