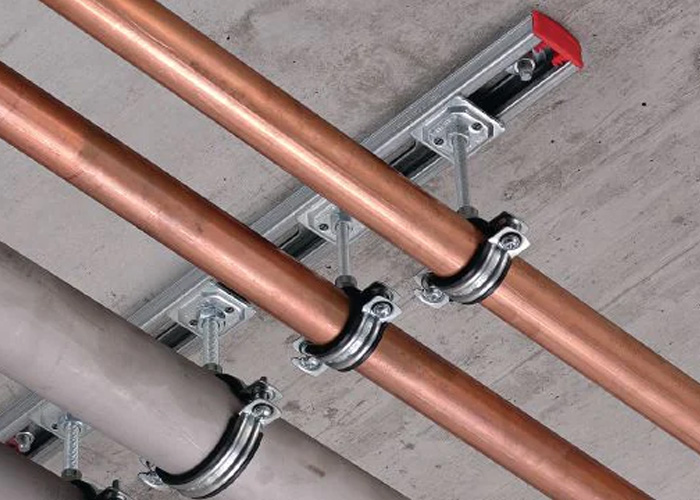

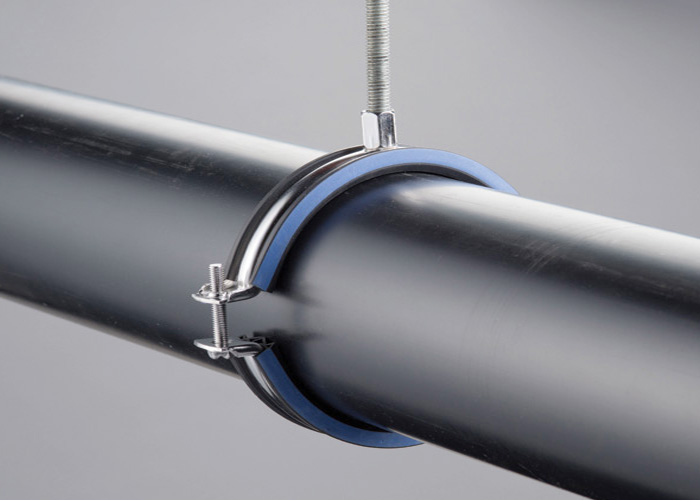

PIPE HANGER WITH EPDM LINING is recommended for non-insulated stationary pipelines in a horizontal position. It can be used for supporting pipes along with the roof.

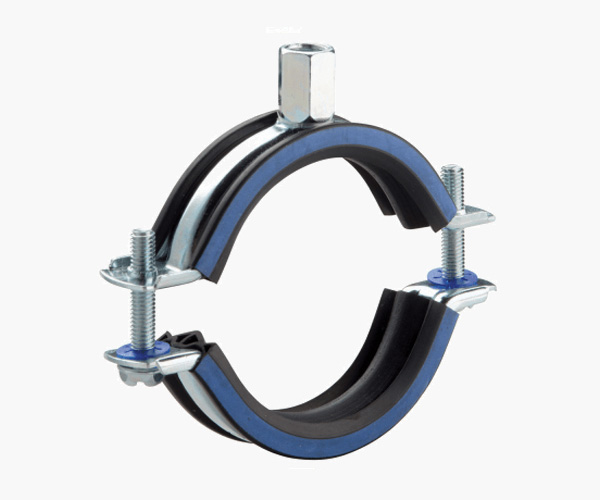

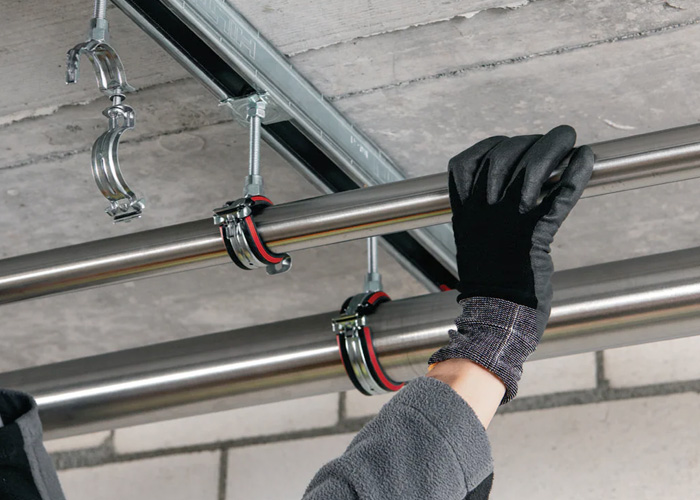

PIPE HANGER with EPDM lining consists of piece of mild steel shaped to wrap around the pipe. The selection of the proper PIPE HANGER WITH EPDM LINING depends upon load to be carried. Permits installation before and after pipe is in place. Reduces noise upto 18 dB.
Mild Steel. Also other materials can be provided on request
-20°C 110°C
Plain, Electro-Galvanized, Hot Dip Galvanized, Zinc Flake & Epoxy Coated.
| PRODUCT CODE | NOMINAL PIPE SIZE | PIPE OD | RANGE | HANGER ROD | SIDE SCREW | MAX LOAD | |
|---|---|---|---|---|---|---|---|
| IN. | MM | (MM) | (MM) | SIZE (MM) (A) | SIZE | (KG) | |
| TGNC0LU0E0022 | 1/ 2” | DN15 | 21.3 | 20-25 | M10 | M6 | 460 |
| TGNC0LUFE0027 | 3/ 4” | DN20 | 26.7 | 26-30 | M10 | M6 | 460 |
| TGNC0LUFE0034 | 1" | DN25 | 33.4 | 32-36 | M10 | M6 | 460 |
| TGNC0LUFE0042 | 1 1/ 4” | DN32 | 42.1 | 38-43 | M10 | M6 | 460 |
| TGNC0LUFE0048 | 1 1/ 2” | DN40 | 48.2 | 47-51 | M10 | M6 | 460 |
| TGNC0LUFE0060 | 2" | DN50 | 60.3 | 60-64 | M10 | M6 | 460 |
| TGNC0LUFE0073 | 2 1/ 2” | DN65 | 73.0 | 74-80 | M10 | M6 | 570 |
| TGNC0LUFE0089 | 3" | DN80 | 88.9 | 87-92 | M10 | M6 | 570 |
